High Speed PLC Control Air Jet Shower Tunnel 4000W Blow Power For Robot Line

Largo Cargo Tunnel Air Shower Room  With Soft PVC Fast Speed Shutter Doors For Robot Line

Doors: Soft PVC Fast Speed Scrolled Doors

Door Net Width: 1800mm

Air shower with high speed shutter door.pdf

Description:

Tunnel Air Shower is Suitable for environments where multiple personnel are moving thru the air shower at one time.

Air Shower Tunnel  for clean room is a kind of partial clean equipment with rather strong universality and

is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters

to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the

clean area and maintain the normal working status.

Blowing type: single-side blowing, double-side blowing, three-side blowing.

Standard Features:

1. Large Airflow and Low Noise Blower fan

2. Neoprene vibration isolator for blower

3. 99.99% 0.3 micron HEPA filter

4. Stainless Steel adjustable air nozzles

5. MEVR 7 pre-filters located at the botton of the wall for easy access

6. Electric door interlock 12DV with 50kg holding force.

7. Emergency stop station (Shutts off blower and turns off locks)

8. Commercial duty door closers.

9. LED light fixture.

10. Pre-wire control panel with non-fused disconnect switch, tranfermers, motor starter with short circuit and overload protection and fused and circuit breaker.

Optional accessory:

1. Manual swing door / automatic sliding door/High speed scroll shutter door

2. HEPA filter or ULPA filter

3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304

4. Common fluorescent lamp / UV Sterilizer lamp

5. With voice announce

Parameter:

 size and specificaton:

Air shower pictures:

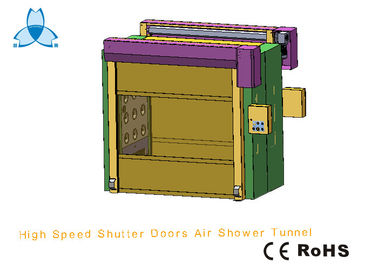

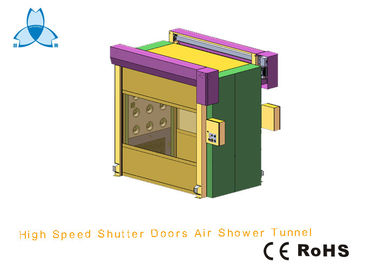

Drawing Of Air Shower Tunnel

Testing in factory:

All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.

Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.

Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing

Warranty:

The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.

Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.

Why you choose ZHISHENG Company ?

Professional service:

Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.

Delivery time:

• Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.

After sales service:

• We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.

Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.

Cleanroom equipments,like air shower, FFU. It is one-year warranty.
