3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms

3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms

    • 3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms
    • 3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms
    • 3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms
  • 3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001/CE/ROHS
    Model Number: AS-2300T-2.95-SD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Ex Dimension: W2300xD2950xH2300MM
    Doors: PVC Fast Rolling Shutter Doors Control: PLC
    Wind Speed: 22-25m/s Class: 100 Class



    3 Modulars Automatic Control Fast Rolling Shutter Door Cleanroom Cargo Air Shower For Large Goods



    Doors: Soft PVC Fast Speed Scrolled Doors



    Door Net Width: 1800mm



    Description:



    Air Shower Tunnel  for clean room is a kind of partial clean equipment with rather strong universality and



    is installed at the partition between the clean and non-clean rooms. Its used for the personnel or matters



    to shower before entering the clean area. After using it, the dust could effectively be reduced to enter the



    clean area and maintain the normal working status.



    We design, fabricate and install air shower for clean room personnel.



    These clean room air shower tunnels are especially used in different kinds of laboratories, pharmaceutical industries and animal facilities;



    where they act as entry systems that decontaminate personnel before entering into clean environment.



    Our engineering team carefully designs and configures an air shower that meets your specific working conditions.



    Tunnel and conveyor type units are also constructed for carts, equipment and cargo etc.



    We in-house construct air shower; therefore, we offer our customers facility to order according to their specific requirements.



    Our air shower units are available in different design configurations and material of construction



    . Our air shower prices are competitive, quality is unmatched and each unit is covered with excellent warranty terms.

    Air Shower Tunnel

    Where 5 or more person occupancy per cycle is required air shower tunnel comes into effect.



    Air shower tunnels are designed with standard widths 48" and 60". Customized units are also available with maximum length of 30 ft.

    Applications

    Air showers are one of most demanding arrangements in most of the industries; where, removing fine particles attached to persons and products is mandatory.



    Such industries are: animal facilities, pharmaceutical, chemical research lab, electronics and semi-conductor, optical and aerospace etc.

    Design and Construction

    Air showers are designed in various configurations such as Entry exit type, L type entry exit, one way entry and two way exit type and tunnel and conveyor type etc. If you are unsure whi





    Features:



    1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.



    (One door in open state, the other door must in close state. When people enter air shower, the system will



    shower automatically by photoelectric sensor)



    2. Air shower time from 1 to 99 seconds which can be adjustable



    3. Adopt Pre filter and HEPA filter



    4. The door, bottom-board, nozzles are used of stainless steel, good appearance.



    5. When air shower is used to pass cargo, it is without bottom-board.



    Optional accessory:



    1. Manual swing door / automatic sliding door/High speed scroll shutter door



    2. HEPA filter or ULPA filter



    3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



    4. Common fluorescent lamp / UV Sterilizer lamp



    5. With voice announce





    Parameter:



    Product type  3 Modulars Largo Cargo Air Shower Room Tunnel With Soft PVC Fast Speed Shutter Doors For Robot Line
    Material for casing T=1.2MM Steel with Spray painting for outside, stainless steel 304 for inside, no base
    Material for doors Soft PVC
    Nozzles Stainles steel
    Door leaf SIngle
    Door type High Speed Shutter Doors
    Blowing way 3-side blowing
    Control system

    English intelligent control panel with human voice and

    PLC control system

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 22-25m/s
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     size and specificaton:



    Product 3 Modulars Automatic Control Fast Rolling Shutter Door Cleanroom Cargo Air Shower For Large Goods
    Model AS-2300T-2.95-SD
    External dimensions (mm) W2300*D2950*H2300
    Internal dimensions WxHxD(mm) 1800*D2950*H2000
    Doors 2 sets of High speed shutter doors
    Door closer NONE
    Lock  electric  interlocked
    Suitable  Both People and Goods
    Nozzles 18+18+18=54 PCS(3-side blowing)
    Blower fan 4 sets
    Blow power(W) 4000W
    Weight(kg) Appro.980
    HEPA filter size 610x610x90mm
    HEPA filter qty 6PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 2 PCS
    Fluorescent Lamp Philips 3x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

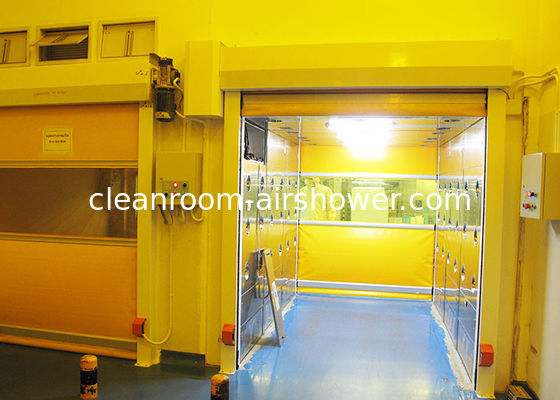

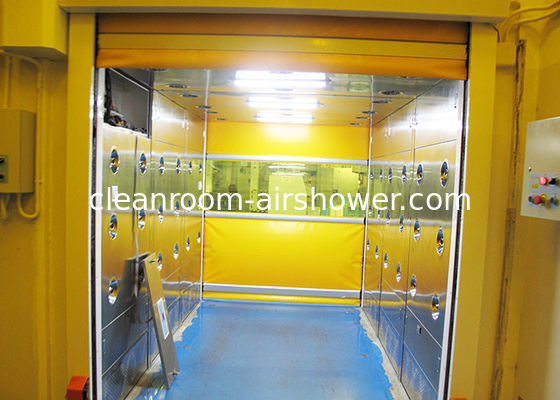

    Air shower pictures:

    3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms



    Drawing Of Air Shower Tunnel



    3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms3 Modulars Air Shower Room Tunnel , Large Goods Air Showers For Clean Rooms





    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
