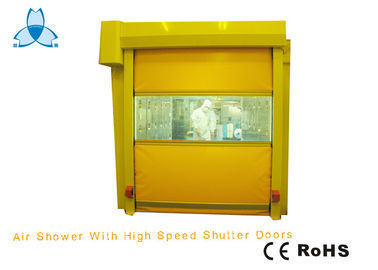

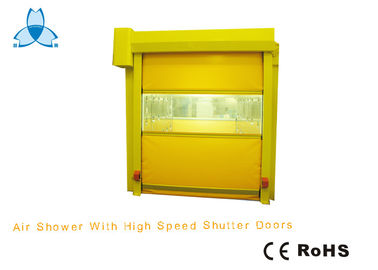

Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter

Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter

    • Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
    • Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
    • Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
    • Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
  • Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001/CE/ROHS
    Model Number: AS-2300T-2.95-SD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New Ex Dimension: W2300xD2950xH2300MM
    Doors: PVC Fast Rolling Shutter Doors Control: PLC
    Wind Speed: 22-25m/s Class: 100 Class



    Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter



    Doors: Soft PVC Fast Speed Scrolled Doors



    Door Net Width: 1800mm



    Description:



    ZHISHENG offers our Air Showers in different design configurations and materials of construction to meet your exact requirements.



    Air Showers are designed to remove surface contamination from personnel prior to entering a Cleanroom or Clean Work Area such as a Paint Spray Booth.



    Numerous contaminants can be introduced into a clean room environment by being transported on the outer garments of an individual entering a clean room,



    and for that reason, many clean rooms will feature a personnel, equipment or productair shower.



     An air shower is a self-contained unit that utilizes specialized, high efficiency air flow and other technologies to effectively remove all types of contaminants



    from the every individual.



    All of our Air Showers feature Hi-Flow V-Bank HEPA or ULPA Filters, recessed lights, Interlocking doors, and PLC Programmable Logic Controller and Emergency Stop buttons



    We offer different types of Air Showers, S Series (Straight Thru Passage), L Series (Right Angle Passage) and T Series (3-door passage).



    These units are also available in a Low-profile where the motor blower and HEPA Module are alongside the base unit instead of on top of the base.



    Units can be coupled together to create a Tunnel configuration for passage of large groups of personnel.



    Choose the correct type for your application or call and speak to one of our experienced sales engineers for assistance.



    Features:



    1. The control system run automatically by photoelectric sensor, the two door are electric interlocked.



    (One door in open state, the other door must in close state. When people enter air shower, the system will



    shower automatically by photoelectric sensor)



    2. Air shower time from 1 to 99 seconds which can be adjustable



    3. Adopt Pre filter and HEPA filter



    4. The door, bottom-board, nozzles are used of stainless steel, good appearance.



    5. When air shower is used to pass cargo, it is without bottom-board.



    Optional accessory:



    1. Manual swing door / automatic sliding door/High speed scroll shutter door



    2. HEPA filter or ULPA filter



    3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



    4. Common fluorescent lamp / UV Sterilizer lamp



    5. With voice announce





    Parameter:



    Product type  Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
    Material for casing T=1.2MM Steel with Spray painting for outside, stainless steel 304 for inside, no base
    Material for doors Soft PVC
    Nozzles Stainles steel
    Door leaf SIngle
    Door type High Speed Shutter Doors
    Blowing way 3-side blowing
    Control system

    English intelligent control panel with human voice and

    PLC control system

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 22-25m/s
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     size and specificaton:



    Product Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter
    Model AS-2300T-2.95-SD
    External dimensions (mm) W2300*D2950*H2300
    Internal dimensions WxHxD(mm) 1800*D2950*H2000
    Doors 2 sets of High speed shutter doors
    Door closer NONE
    Lock  electric  interlocked
    Suitable  Both People and Goods
    Nozzles 18+18+18=54 PCS(3-side blowing)
    Blower fan 4 sets
    Blow power(W) 4000W
    Weight(kg) Appro.980
    HEPA filter size 610x610x90mm
    HEPA filter qty 6PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 2 PCS
    Fluorescent Lamp Philips 3x 20W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor

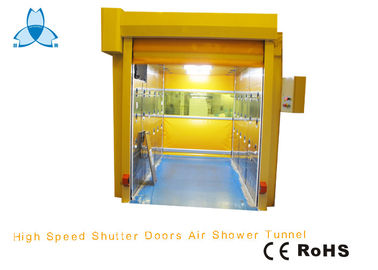

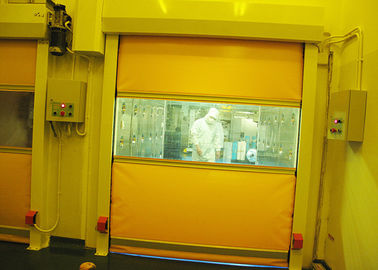

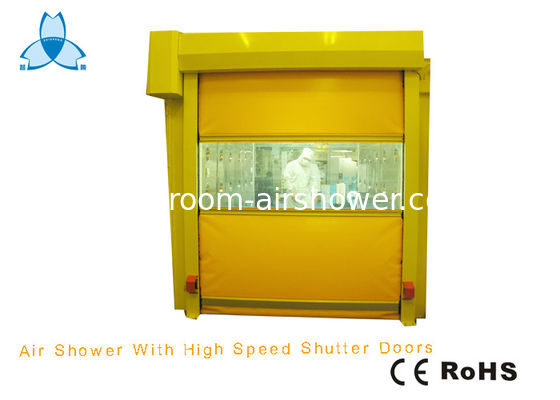

    Air shower pictures:

    Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening ShutterPower Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter



    Drawing Of Air Shower Tunnel



    Power Coated Steel Clean Room Air Shower Tunnel With High Speed Rolling Automatic Opening Shutter





    What is the air flow velocity inside the air shower?



    When the shower cycle commences, pressurized air streams from adjustable nozzles at a velocity of up to 22-22 meter per second.



    This ensures the necessary efficient scrubbing action to remove particulate matter.



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
