| Brand Name: | Zhisheng |
| Model Number: | AS-1890D-5-AD |
| MOQ: | 1 set |
| Delivery Time: | 10-15 days after receive prepayment |
| Payment Terms: | T/T, Western Union |

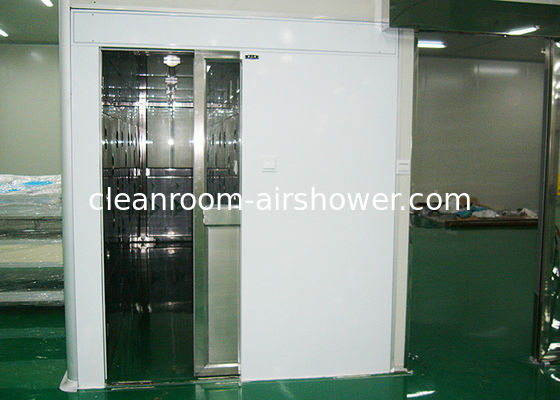

Hidden Automatic Single Leaf Sliding Doors Personal Air Shower Tunnels For Many People
Hidden Doors:Automatic Single Leaf Sliding Doors
Width: 800mm
Usage of Air shower Tunnel With Sliding Doors
Air shower is a kind of partial clean equipment and it is installed at the area between the clean and non-clean room.
It is used for the people and goods to blow (air shower) before entering the clean area, therefore, reducing the particules and making sure the cleanliness.
Description:
Air Shower Tunnel have become an integral component of the modern cleanroom because their benefits
more than pay for the small amount of space they occupy. With their interlocking doors and automatic
cycling, air showers act as traffic guards, controlling passage into and out of the cleanroom.
Air Showers clean micro particles off personnel and equipment as they enter or exit a cleanroom.
Upon exit, cleanrooms are envelope sealed when the unit automatically switches into an airlock.
They can also be used to remove hazardous contaminate from personnel when exiting facilities
Not to be ignored is the psychological impact an air shower creates: Personnel are reminded with every
passage that they are entering a controlled environment,
while prospective clients are assured of your quality control standards when they enter your facility.
Blowing type: single-side blowing, double-side blowing, three-side blowing.
Optional accessory:
1. Manual swing door / automatic sliding door/High speed scroll shutter door
2. HEPA filter or ULPA filter
3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304
4. Common fluorescent lamp / UV Sterilizer lamp
5. With voice announce
Parameter:
| Product type | Hidden Automatic Single Leaf Sliding Doors Personal Air Shower Tunnels For Many People |
| Material for casing | T=1.2MM Power coated steel for outside, SS304 for inside |
| Material for doors | Stainless steel 304 |
| Nozzles | Stainles steel |
| Door leaf | single leaf |
| Door type | Sliding doors |
| Blowing way | 3-side blowing |
| Control system |
English intelligent control panel with human voice |
| Locks | Electric interlocked |
| HEPA filter efficinecy: | 99.99% |
| Pre filter | G3 |
| Light | Philips brand |
| Photoelectric sensor | OMRON brand |
| Shower time | 0-99s adustable |
| Spurt wind speed | 25-27m/s above |
| Power supply | 380V/50HZ/3PH |
| Safeguard | Leakage switch and thermal overload relay (Protect people from electric leakage) |
Size and specificaton:
| Product | Hidden Automatic Single Leaf Sliding Doors Personal Air Shower Tunnels For Many People |
| Model | AS-1890D-5-AD |
| External dimensions (mm) | W1890*D5000*H2150MM |
| Internal dimensions mm | W800*D5000*H1925MM |
| Doors | 2 sets of SS Single-leaf sliding doors |
| Door closer | NONE |
| Lock | electric interlocked |
| Suitable | People and Goods |
| Nozzles | 32+32=64PCS(2-side blowing) |
| Blower fan | 8 sets |
| Blow power(W) | 3200W |
| Weight(kg) | Appro.1200 |
| HEPA filter size | 610x610x90mm |
| HEPA filter qty | 8 PCS |
| HEPA filter efficiency | H13 |
| Photolectric sensor | ORMON 2 PCS |
| Fluorescent Lamp | Philips 4x 20W |
| Nozzle diameter | 32mm |
| Air shower time | 0-99 s Adjustable |
| Spurt wind speed | 22-25m/s |
| Power Supply | AC380V/50Hz/3Ph |
| Control system | Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor |
Drawing of Air Shower Tunnel
Can custom air showers be manufactured?
We offers both standard and custom air showers. Please contact us for more information.
Is it possible to alter the settings on the air shower?
Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.
Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
Fast reply in 12 hours if we receive any inquiry or request from customer
Familiar with equipment.
Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
Cleanroom equipments,like air shower, FFU. It is one-year warranty.
We have CE and ROHS Certificate for air shower
|
|
