Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen

Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen

    • Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen
    • Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen
    • Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen
  • Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen

    Product Details:

    Place of Origin: Guangdong, China (Mainland)
    Brand Name: Zhisheng
    Certification: ISO 9001/CE/ROHS
    Model Number: ASS-2000D-T-3-SD

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 set
    Packaging Details: plywood case
    Delivery Time: 10-15 days after receive prepayment
    Payment Terms: T/T, Western Union
    Supply Ability: 200 Set/Sets per Month
    Contact Now
    Detailed Product Description
    Condition: New EX Dimension: W2000xD3000xH2300mm
    In Dimension: W1500xD3000xH2000mm Doors: 4 Doors
    Wind Speed: 22-25m/s Class: 100 Class

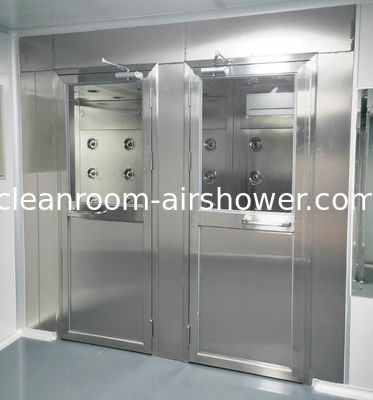

    Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen



    Doors: (1). 2 pieces of Single-leaf Swing doors, for persons to enter

                 (2). 1 pieces of Double-leaf Swing door, for materials to enter

                 (3)  1 Piece of high speed shutter door, for perons and materials to exit



    Four doors are interlocked by controlled PLC, one door is open, other three doors are closed, cannot be opened.



    Description:



    Air Shower Tunnel have become an integral component of the modern cleanroom because their benefits



    more than pay for the small amount of space they occupy. With their interlocking doors and automatic



    cycling, air showers act as traffic guards, controlling passage into and out of the cleanroom.



    After using it, the dust could effectively be reduced to enter the clean area and maintain the normal working status.



    This air shower tunnel of which automatic sliding door is convenient for people entering air shower room,



    as well to reduce the enter time.



    Air Showers clean micro particles off personnel and equipment as they enter or exit a cleanroom.



    Upon exit, cleanrooms are envelope sealed when the unit automatically switches into an airlock.



    They can also be used to remove hazardous contaminate from personnel when exiting facilities



    Not to be ignored is the psychological impact an air shower creates: Personnel are reminded with every



    passage that they are entering a controlled environment,



    while prospective clients are assured of your quality control standards when they enter your facility.



    Blowing type: single-side blowing, double-side blowing, three-side blowing.



    Optional accessory:



    1. Manual swing door / automatic sliding door/High speed scroll shutter door



    2. HEPA filter or ULPA filter



    3. Material for cabinet: cold-rolled steel plate with powder coated / SUS#201 / SUS#304



    4. Common fluorescent lamp / UV Sterilizer lamp



    5. With voice announce





    Operation Instruction



    1.Put air shower on the correct location, connect the power wires of air shower with the power wires,



    There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.



    2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.



    2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.



    2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be



    blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,



    then exit sliding door will be close automatically.



    Parameter:



    Product type Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen
    Material for casing T=1.2MM stainless steel
    Material for doors Stainless steel
    Nozzles Stainles steel
    Door leaf single leaf, double-leaf
    Door type swing doors and high speed shutter door
    Blowing way 3-side blowing
    Control system

    PLC

    Locks Electric interlocked
    HEPA filter efficinecy: 99.99%
    Pre filter G3
    Light Philips brand
    Photoelectric sensor OMRON brand
    Shower time 0-99s adustable
    Spurt wind speed 25-27m/s above
    Power supply 380V/50HZ/3PH
    Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



     Size and specificaton:



    Product Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen
    Model ASS-2000T-3-SD
    External dimensions (mm) W2000xD3000xH2300mm
    Internal dimensions mm W1500xD2900xH2000mm
    Doors Four doors
    Door closer NONE
    Lock  electric interlocked
    Suitable  People and Goods
    Nozzles 18+18+18=54PCS(3-side blowing)
    Blower fan 6 sets
    Blow power(W) 6000W
    Weight(kg) Appro.1200
    HEPA filter size 610x610x90mm
    HEPA filter qty 6PCS
    HEPA filter efficiency H13
    Photolectric sensor ORMON 2 PCS
    Fluorescent Lamp Philips 3x 18W
    Nozzle diameter 32mm
    Air shower time 0-99 s Adjustable
    Spurt wind speed 22-25m/s
    Power Supply AC380V/50Hz/3Ph
    Control system PLC, electric interlock, automatical blowing by photoelectric sensor




    Air shower tunnel picture:

    Air Shower for Persons and materials with 4 doors controlled by PLC and touch screenAir Shower for Persons and materials with 4 doors controlled by PLC and touch screen





    Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen

    Drawing of Air Shower Tunnel



    Air Shower for Persons and materials with 4 doors controlled by PLC and touch screen



    Can custom air showers be manufactured?



    We offers both standard and custom air showers. Please contact us for more information.



    Is it possible to alter the settings on the air shower?



    Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.



    Testing in factory:



    All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



    Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



    Testing before shipment:

    1. Appearance inspection

    2. Electrical safety tests

    3. Air wind speed testing

    4. Function testing



    Warranty:



    The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

    All equipment is shipped with a comprehensive use’s manual with testing report.

    Additional IO/OQ/GMP document is available upon request.

    Contact our sales representative for specific warranty details or document request.



    Replacement parts:

    1. HEPA filter: It should be changed in half or one year once.

    2. Pre filter: It should be changed in 3-6 month once.



    Why you choose ZHISHENG Company ?



    Professional service:



    Fast reply in 12 hours if we receive any inquiry or request from customer

    Familiar with equipment.

    Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





    Delivery time:

    Production period:15-30days

    • Shipping notice or insurance for you after the goods is shipped.



    After sales service:



    We respect your feed back after receive the goods.

    • We provide 1 year warranty after goods arrive.

    • We promise all spare parts available in lifetime use.

    • We care of your complain within 48hours.



    Payment Term:

    30% prepayment by T/T at order, the balance of payment before shipment.



    Our Services

    Cleanroom equipments,like air shower, FFU. It is one-year warranty.



    Certificate:


    We have CE and ROHS Certificate for air shower
