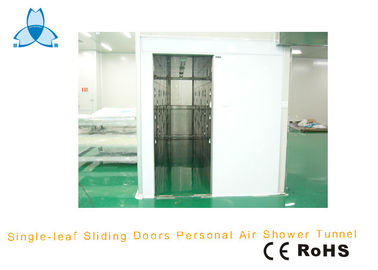

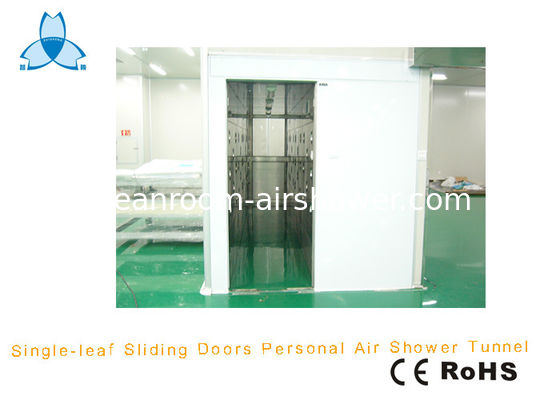

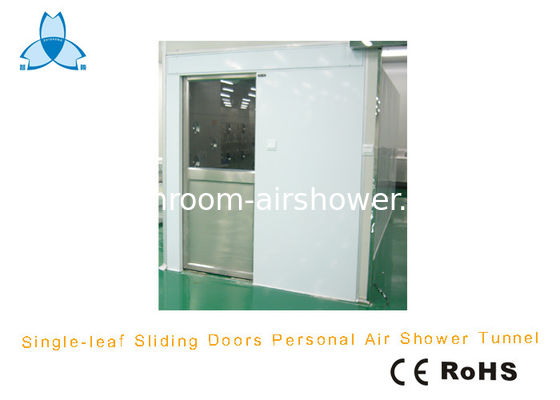

Straight Through Painted Steel Clean Room Air Shower With Stainless Steel 304 Doors

Straight Through Painted Steel Clean Room Air Shower With Stainless Steel 304 Doors

MOQ: 1 set
Standard Packaging: plywood case
Delivery Period: 10-15 days after receive prepayment
Payment Method: T/T, Western Union
Supply Capacity: 200 Set/Sets per Month
Detail Information
Place of Origin
Guangdong, China (Mainland)
Brand Name
Zhisheng
Certification
ISO 9001/CE/ROHS
Model Number
AS-1890D-5-AD
Condition:
New
EX Dimension:
W1890*D4000*H2150MM
In Dimension:
W800*D4000*H1925MM
Doors:
Single Leaf Sliding Doors
Wind Speed:
22-25m/s
Class:
100 Class
Minimum Order Quantity:
1 set
Packaging Details:
plywood case
Delivery Time:
10-15 days after receive prepayment
Payment Terms:
T/T, Western Union
Supply Ability:
200 Set/Sets per Month
High Light:

clean room air showers

,

dust free room

Product Description



Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors



Hidden Doors:Automatic Single Leaf Sliding Doors  Width: 800mm



Air shower for materials.pdf

The cleanroom air shower serves to protect your cleanroom environment from unwanted contamination.
The clean garments become contaminated during the gowning/ungowning process, and because of high traffic in the gowning area.
The contamination problem is amplified when the same garment is worn several times or is taken on and off numberous times during the day.
The air shower is a fast and effective method of removing this surface contamination which will otherwise be carried directly to your cleanroom.
The cleanroom air shower is constructed using heavy gage painted steel (no particle board) to minimize particle generation.
The air shower provides air flow of approximatgely 1900 CFM through 32 adjustable nozzles yielding a 7800 LFPM nozzle air velocity with optional 9100 nozzle velocities.

The air shower has a knock-down design that allows ease-of-installation and flexibility in use.
The air shower can be shipped knowcked down or completely assembled. When it is shipped knock-down all parts fit through a standard door.
All service to the blower, motor and filters is done from inside the air shower.
The unit also offers an optional design that allows all the installation assembly to be done from inside the air shower.

Air Shower Specifications

Filter: Twelve inch HEPA (High Efficiency Particulate Air) type, PSL challenged, zero probed. Minimum efficiency of 99.99% at .3 microns.



Pre-filter: One inch bonded polyfiber media minimizes surface-loading. Low wall return to HEPA filter atop unit. Quick release grille.



Blowing type: single-side blowing, double-side blowing, three-side blowing.



Operation Instruction



1.Put air shower on the correct location, connect the power wires of air shower with the power wires,



There are FIVE lines: 3*Live line, 1*Null line and 1*Earth line. The power supply is AC380V/50HZ/3 phases.



2. In order to make sure air shower to work normally and the cleanliness of workshop, please kindly use air shower according to the following correct method.



2.1 Please check if there are any people in air shower before you enter it. When air shower is working entrance door and exit door are electronic interlocked, it is forbidden to open the door at this moment.



2.2 Put hand toward to Open switch, the entrance sliding door will open , enter air shower, then entrance sliding door will be close automatically, photoelectric sensor is reacted by people or goods, blower fan will be



blowing automatically (The air shower time is set 15seconds at factory, it is forbidden to change the air shower time during blowing), after blowing, exit sliding door open automatically, go out air shower,



then exit sliding door will be close automatically.



Parameter:



Product type Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors
Material for casing T=1.2MM Power coated steel for outside, SS304 for inside
Material for doors Stainless steel 304
Nozzles Stainles steel
Door leaf single leaf
Door type Sliding doors
Blowing way 3-side blowing
Control system

English intelligent control panel with human voice

Locks Electric interlocked
HEPA filter efficinecy: 99.99%
Pre filter G3
Light Philips brand
Photoelectric sensor OMRON brand
Shower time 0-99s adustable
Spurt wind speed 25-27m/s above
Power supply 380V/50HZ/3PH
Safeguard Leakage switch and thermal overload relay (Protect people from electric leakage)



 Size and specificaton:



Product Straight Through Painted Steel Clean Room Air Shower Tunnel With Stainless Steel 304 Doors
Model AS-1890D-4-AD
External dimensions (mm) W1890*D4000*H2150MM
Internal dimensions mm W800*D4000*H1925MM
Doors 2 sets of SS Single-leaf sliding doors
Door closer NONE
Lock  electric interlocked
Suitable  People and Goods
Nozzles 24+24=48PCS(2-side blowing)
Blower fan 8 sets
Blow power(W) 3200W
Weight(kg) Appro.1200
HEPA filter size 610x610x90mm
HEPA filter qty 8 PCS
HEPA filter efficiency H13
Photolectric sensor ORMON 2 PCS
Fluorescent Lamp Philips 4x 20W
Nozzle diameter 32mm
Air shower time 0-99 s Adjustable
Spurt wind speed 22-25m/s
Power Supply AC380V/50Hz/3Ph
Control system Microcomputer control panel with human invoice prompt, electric interlock, automatical blowing by photoelectric sensor






Drawing of Air Shower Tunnel



Straight Through Painted Steel Clean Room Air Shower With Stainless Steel 304 Doors 0Straight Through Painted Steel Clean Room Air Shower With Stainless Steel 304 Doors 1Straight Through Painted Steel Clean Room Air Shower With Stainless Steel 304 Doors 2Straight Through Painted Steel Clean Room Air Shower With Stainless Steel 304 Doors 3



Can custom air showers be manufactured?



We offers both standard and custom air showers. Please contact us for more information.



Is it possible to alter the settings on the air shower?



Our air showers allow the operator flexibility to program numerous settings using an easy-to-use touch-screen control panel. You can easily set cycle operation times, entrance/exit delays, when the lights turn off/on, and more.



Testing in factory:



All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment.



Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.



Testing before shipment:

1. Appearance inspection

2. Electrical safety tests

3. Air wind speed testing

4. Function testing



Warranty:



The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.

All equipment is shipped with a comprehensive use’s manual with testing report.

Additional IO/OQ/GMP document is available upon request.

Contact our sales representative for specific warranty details or document request.



Replacement parts:

1. HEPA filter: It should be changed in half or one year once.

2. Pre filter: It should be changed in 3-6 month once.



Why you choose ZHISHENG Company ?



Professional service:



Fast reply in 12 hours if we receive any inquiry or request from customer

Familiar with equipment.

Technician or enginner can go to Southeast Asian countries for guiding insallation of machines. Like Thailand, Vietnam, Philipines, Malaysia and so on.





Delivery time:

Production period:15-30days

• Shipping notice or insurance for you after the goods is shipped.



After sales service:



We respect your feed back after receive the goods.

• We provide 1 year warranty after goods arrive.

• We promise all spare parts available in lifetime use.

• We care of your complain within 48hours.



Payment Term:

30% prepayment by T/T at order, the balance of payment before shipment.



Our Services

Cleanroom equipments,like air shower, FFU. It is one-year warranty.



Certificate:


We have CE and ROHS Certificate for air shower
