| MOQ: | 1 SET |
| Standard Packaging: | plywood case |
| Delivery Period: | about 15 days upon receipt of deposit |
| Payment Method: | Western Union, T/T, L/C |
| Supply Capacity: | 100 set per month |

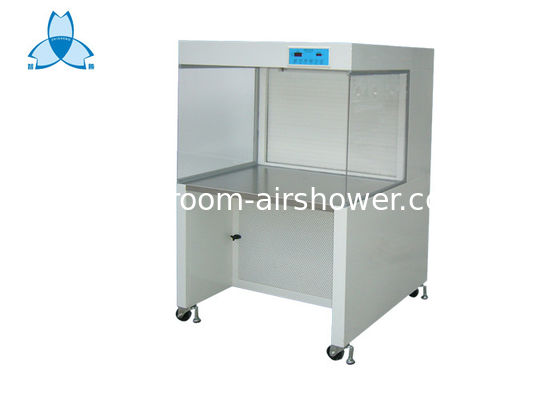

Class 100 Powder Coated Steel Horizontal Laminar Clean Bench For One Person
ISO 9001 Certified
Description:
Laminar clean bench may have a UV light to sterilize the interior and contents before usage to prevent
contamination of experiment. germicidal lamps are usually kept on for 15 minutes to sterilize the interior
and no contact is to be made with a laminar flow hood during this time. During this time, scientists normally
prepare other materials to maximize efficiency.
(It is important to switch this light off during use, to limit exposure to skin and eyes as stray ultraviolet light emissions can cause cancer and cataracts.
Stainless Steel Laminar flow cabinet / clean bench is a specialized equipment to bring high cleanliness to partial area.
The bench top material: Stainless steel 304
Framework: High quality cold rolled steel plate with powder coated or stainless steel
Application:
It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.
Optional accessory:
1. Hepa filter or ULPA filter
2. Static-free top or stainless steel top, the top can be punched
3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.
4. Domestic or EBM fans
5. Pressure gauge
Standard size and specification:
| Model | ZS-SP-900 | ZS-SP-1300 | ZS-SP-1600 | ZS-SP-1900 |
| Dimension (W x D x H) mm | 900x850x1480 | 1300x850x1480 | 1600x850x1480 | 1900X850X1480 |
| Size for working area (W x D x H)mm | 820x550x610 | 1220x550x610 | 1520x550x610 | 1820X550X610 |
| Suitable people | 1 man | 1-2 men | 2-3 men | 3 men |
| Size of HEPA filter(mm) | 820x610x69 | 1220x610x69 | 915x610x69 610x 610x69 | 915 x 610 x 69 |
| QTY of HEPA filter (pcs) | 1 | 1 | 1/1 | 2 |
| Noise | ≤58dB | ≤58dB | ≤58dB | ≤62dB |
| Blow power | 320W | 320W | 370W | 320W |
| Fluorescent lamp | 20Wx1 | 20Wx1 | 20W x 2 | 30Wx2 |
| Material of Bench top | SUS304 | |||
| Produce/Inspection standard | US Federal standard 209E | |||
| Air velocity | 0.35-0.6m/s | |||
| Voltage | 380V/50Hz/3Ph | |||
| Voltage | AC 380V/50Hz/3PH, 220V/50Hz/1Ph or 110V/60Hz/1Ph | |||
| Cleanliness Class | 100 class (US Federal standard 209E) | |||
| Efficiency | 99.99% @0.3μm | |||
Note: Customized size and specification can be acceptable.
Picture:
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
Warranty:
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
Replacement parts:
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
Professional service:
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
Delivery time:
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
Payment Term:
30% prepayment by T/T at order, the balance of payment before shipment.
|
|
