|Place of Origin:||Guangdong, China (Mainland)|
|Minimum Order Quantity:||1 SET|
|Packaging Details:||plywood case|
|Delivery Time:||about 15 days upon receipt of deposit|
|Payment Terms:||Western Union, T/T, L/C|
|Supply Ability:||100 set per month|
|Material:||Power Coated Steel||Air Velocity:||0.45-0.75m/s|
|Size:||600x600x750mm||Suitable Person:||1 Person|

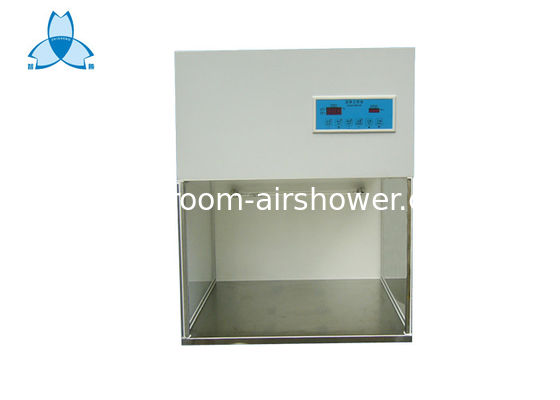

Desktop Top Small HEPA filter Laminar flow cabinet for Laboratory
Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working
environment by taking air through a filtration system and exhausting it across a work surface in a laminar
or unidirectional air stream.
The laminar flow cabinet is enclosed on the sides and kept under constant positive pressure in order to
prevent the infiltration of contaminated room air.
Laminar flow cabinet is widely used in medical research laboratories, hospitals, manufacturing facilities
and other research and production environments
External size: W600*D600*H750MM
Work area zone: W550*D480*H400MM
Material: cold rolled steel with powder coated for mainbody, stainless steel for the worktop.
Suitable person: one person
Average wind speed: 0.45m/s-0.75m/s
HEPA filter efficiency: 99.99%
Purification Rank: Class 100 (ISO5)
Blower fan: Centrigugal sparkless fan
Noise: less than 55dBA
UV light: 1x15W
Fluorescnet light: 1x15 W
Power supply: AC220V/50HZ/1PH, AC110V/60HZ/1PH
It is widely applied to industries like electronics, instrument, apparatus, National Defense, medical care and pharmacy etc.
1. Hepa filter or ULPA filter
2. Static-free top or stainless steel top, the top can be punched
3. Framwork is used of common cold rolled steel plated with powder coated or stainless steel.
4. Domestic or EBM fans
5. Pressure gauge
Standard size and specification:
Note: Customized size and specification can be acceptable.
Testing in factory:
All of equipment will be individually tested for safety and performance in accordance with international Standards before shipment. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
Testing before shipment:
1. Appearance inspection
2. Electrical safety tests
3. Air wind speed testing
4. Function testing
The warranty of our equipment is for 1 year, but excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual with testing report.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.
1. HEPA filter: It should be changed in half or one year once.
2. Pre filter: It should be changed in 3-6 month once.
Why you choose ZHISHENG Company ?
• Fast reply in 12 hours if we receive any inquiry or request from customer
• Familiar with equipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We promise all spare parts available in lifetime use.
• We care of your complain within 48hours.
30% prepayment by T/T at order, the balance of payment before shipment.
