|Frame:||Galvanzied Frame||Separator:||Alminum Separator|
|Application:||Clean Room||Class:||H13 H14|
custom air filters,
air purifier washable hepa filter,
Box Type Washable Hepa Filter
h13 - h14 Two Handles Box Type Hepa Air Filter With Alminum Foil
High capacity HEPA filter are mainly used to filtrate the suspended particles in the air with the diameter of 0.3um and below and used for the terminal filtration of all kinds of filtration system.
HEPA filters are extensively used in the terminal filtration of the civil or industrial cleansing places in the industries such as electron, semiconductor, precision mechanism, pharmacy, hospital and food, etc., which require relatively high cleanliness factors. It is suitable to filtrate for clean room and clean factory workshop with dust particle diameter less then 0.3-0.5um.
Material and operating conditions:
|External frame||Aluminum Alloy/GI/Stainless steel|
|Separator||Clapboard or aluminum foil|
|Filter media||Fiberglass /HV fiberglass / PP|
|Maximum operating temperature||80°C|
|Maximum operating humidity||100%|
|HEPA filter Efficiency||≥99.99%|
1: The HEPA with aluminum separator is the finally filtration in clean room that use for filter the particles more than 0.3um, and in high airflow environment.
2: The media is used of micro glass fiber, the paper clapboard or the aluminum foil spacer in regular so that the refresh air pass through the media very easy. make the best of area used and increase the intensity of the pleats
3: The paper / aluminum foil media in 180 degree fold that compost of the wedge layer so that prevented the media damage.
4: The sealant around the media so that the air filter without any air leaking,
the frame can be wooden, aluminum,galvanized or stainless steel.
5: Laser to scan the each air filter one by one,
6: The HEPA air filter efficiency range: H10, H11, H12 H13, H14,
7: Each air filter with test report accompany
Size and Specification:
|Model||Dimensions(mm)||Rated air flow (m3/h)||Initial resistance (Pa)||Efficiency (MPPS)||Class (EN1822)|
|ZS-GB320||320x320x220||400||≤220(fiberglass) ≤120(HV fiberglass) ≤120(PP)||95% -99.995%||F9-H14|

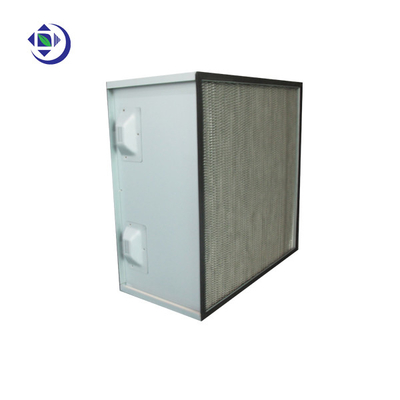

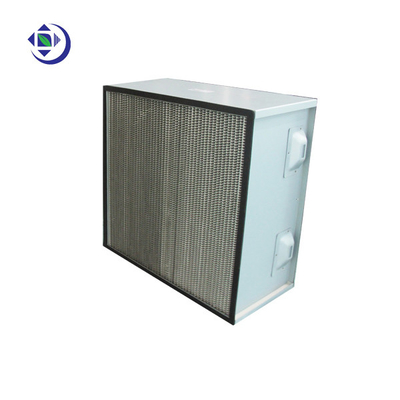

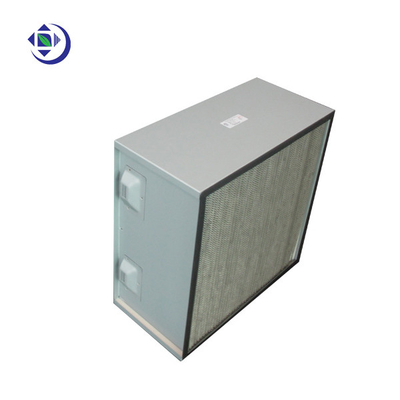

Pictures of HEPA filter
30% prepayment by T/T at order, the balance of payment before shipment.
• Production period:15-30days
• Shipping notice or insurance for you after the goods is shipped.
After sales service:
• We respect your feed back after receive the goods.
• We provide 1 year warranty after goods arrive.
• We care of your complain within 48hours.
Contact Person: Miss. Rita Guo
